Custom shape cutting, adaptable to any graphic design. Unlimited design possibilities to bring your ideal processing to life.
The fully automatic loading system lifts, intelligently sorts, and instantly feeds the whole bundle of tubes. Single tube loading takes only 15s.
Special safety-glass and sealed cutting areas provide a safe view of the processing area during operation, while an independent safety system allows you to load a new tube section with no production interrupting.

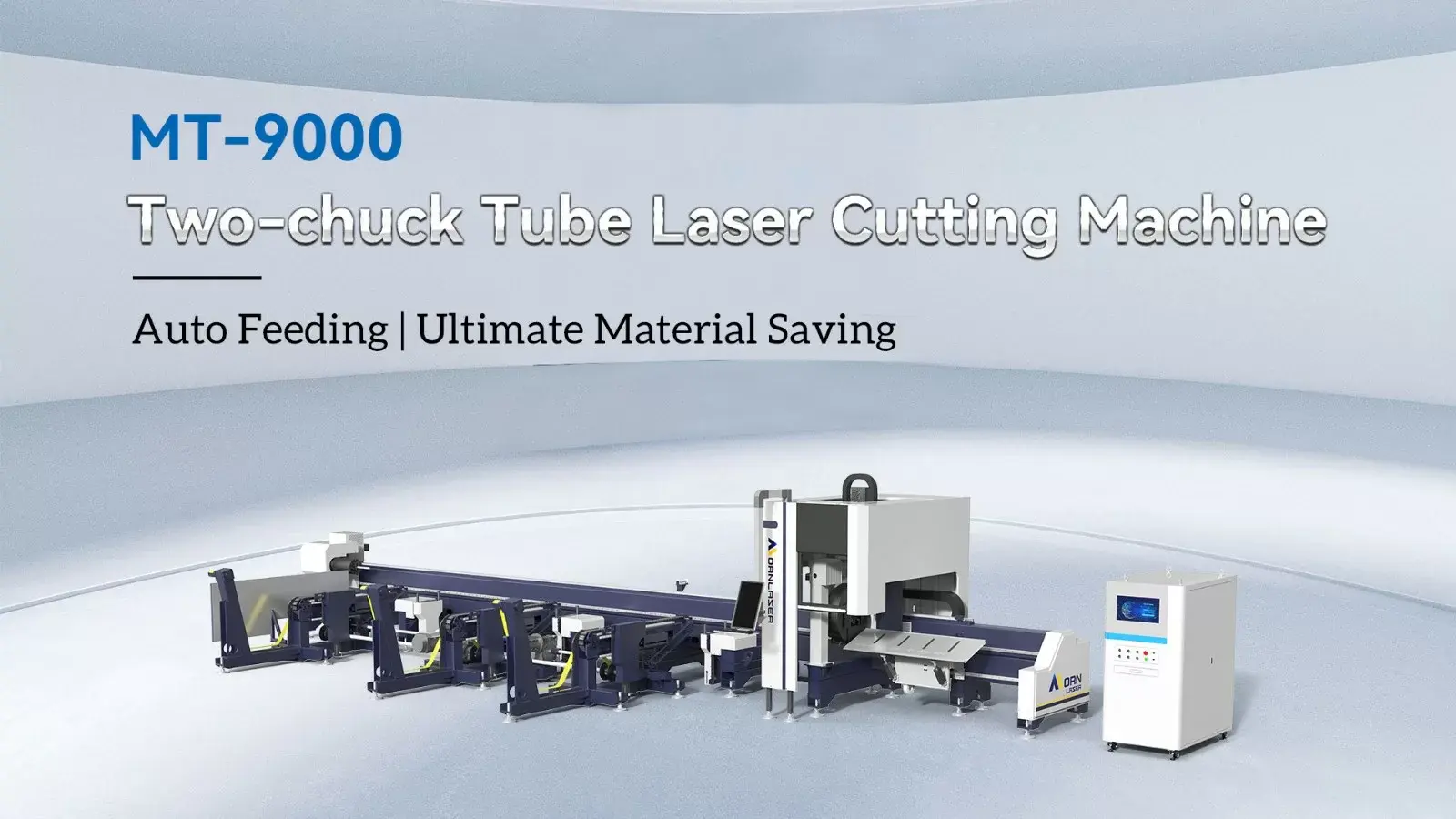

Favored by metal sheet fabrication factories, automation lines and large fabrication stations, this metal tube laser cutting machine can accurately cut various complex shapes on metal pipes such as carbon steel, stainless steel, and aluminum.

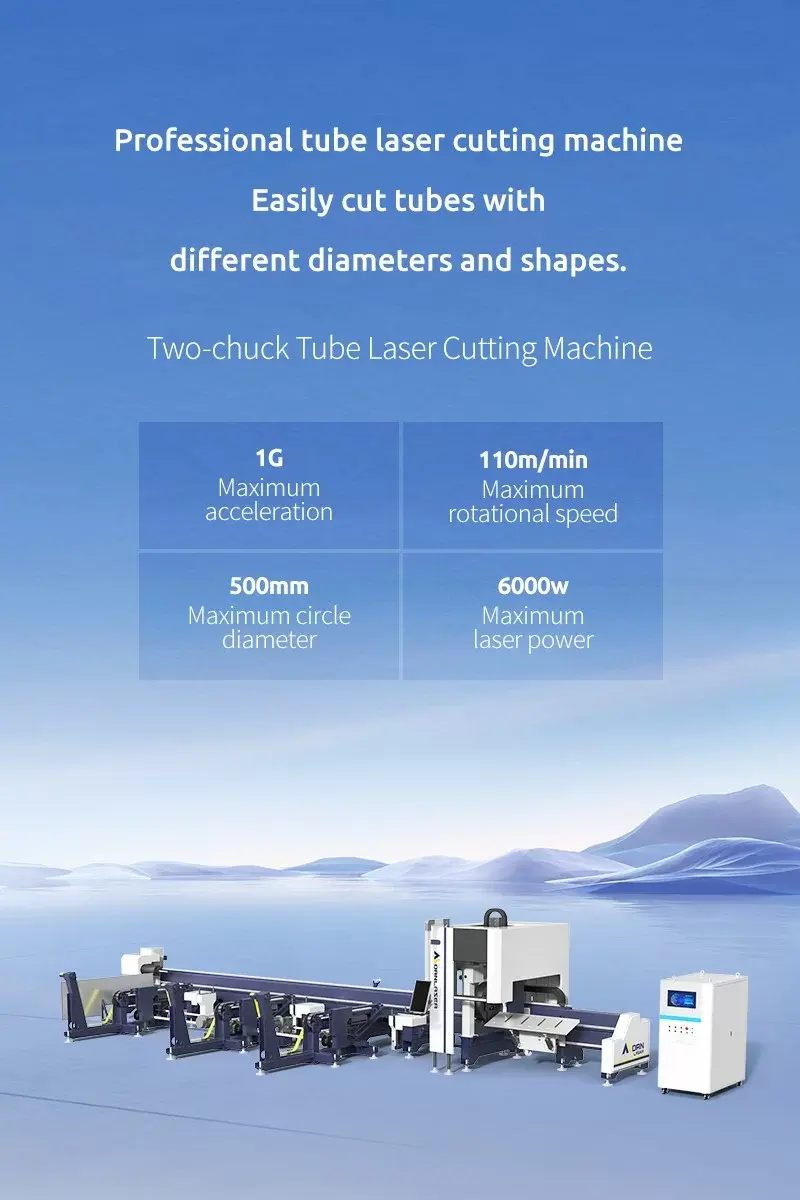

Model | N-H62 |
Pipe Diameter | φ20mm-160mm/ 200mm/350mm/500mm |
Pipe Length | 3m-15m |
Laser Power | 1000W/1500W/2000W/3000W/4000W/6000W/12000W |
Max. Chuck Rotating Speed | 75m/min |
Pipe Length | 3-15m |
Max. Acceleration Speed | 0.8 G |
The metal laser cutting equipment can directly process metal coils, realizing an integrated production line of uncoiling, leveling, feeding, cutting and unloading during the production process.
This laser cutting machine is specially designed for the steel structure industry and is suitable for cutting I-beams, H-beams, channel steels and other profile steels. It can be accurately connected to Tekla, reducing manual drawing time and improving production efficiency;
Three-chuck linkage cutting boosts your tube utilization with virtually no tailings. Three-position tube clamping plus follow-up supports ensure stable tube feeding and prevent long tubes from bending. As a result, you profit from high cutting precision, great efficiency and low material costs.
The metal laser cutting equipment can directly process metal coils, realizing an integrated production line of uncoiling, leveling, feeding, cutting and unloading during the production process.
This laser cutting machine is specially designed for the steel structure industry and is suitable for cutting I-beams, H-beams, channel steels and other profile steels. It can be accurately connected to Tekla, reducing manual drawing time and improving production efficiency;
