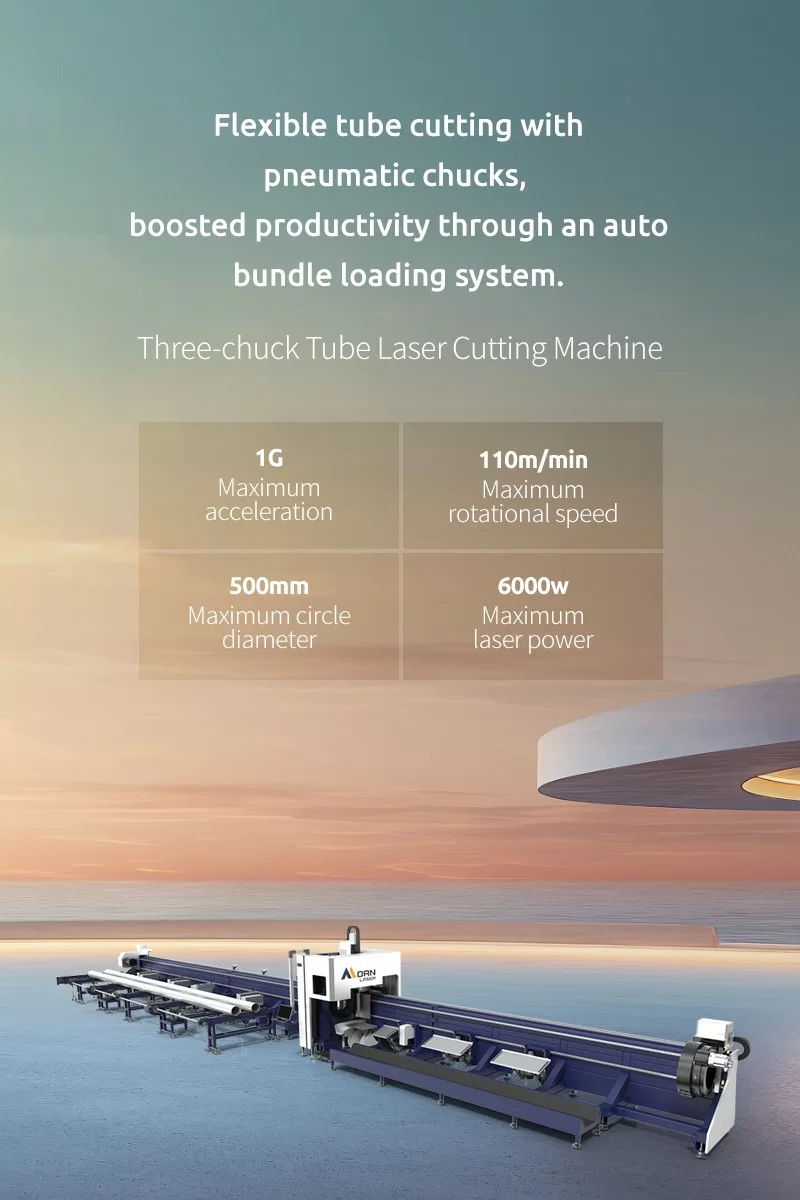

Flexible tube cutting with pneumatic chucks, boosted productivity through an auto bundle loading system.

Three-chuck Tube Laser Cutting Machine

1G
Maximum acceleration
110m/min
Maximum rotational speed
500mm
Maximum circle diamete
6000w
Maximum laser power
Three-chuck Tube Laser Cutting Machine
See how Morn Laser metal tube laser cutter advance your factory
Improved tube utilization
Top production output
Low cost per part
Optimal parts design
Video Thumbnail
 Three-chuck linkage cutting brings about extremely short tailing

Three-chuck linkage cutting brings about extremely short tailing

Three-chuck linkage cutting boosts your tube utilization with virtually no tailings.Three-position tube clamping plus follow-up supports ensure stable tube feeding and prevent long tubes from bending. As a result, you profit from high cutting precision, great efficiency and low material costs. Tube loading weighs up to 180kg with outer diameters up to φ500mm.

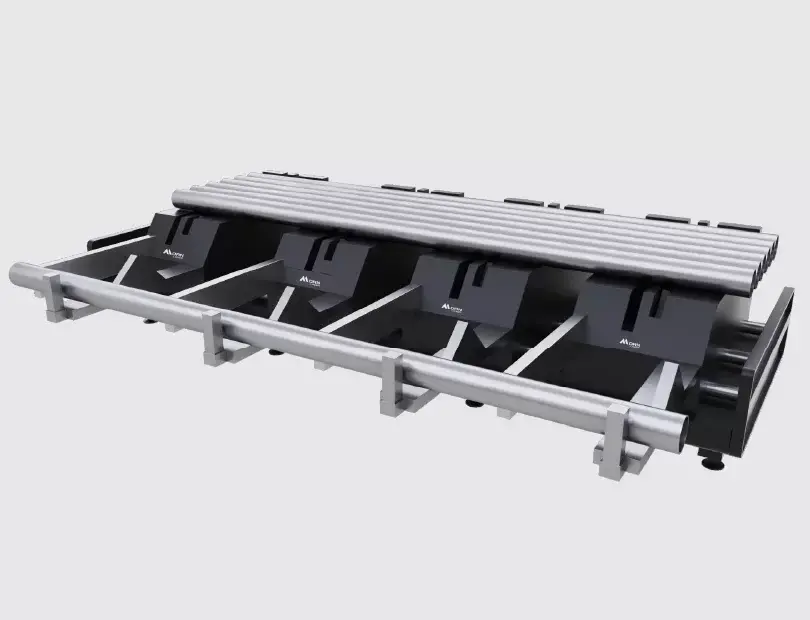

 Automatic bundle loader boosts production of big lots

Automatic bundle loader boosts production of big lots

The fully automatic loading system lifts, intelligently sorts, and instantly feeds the whole bundle of tubes. Single tube loading takes only 15s.

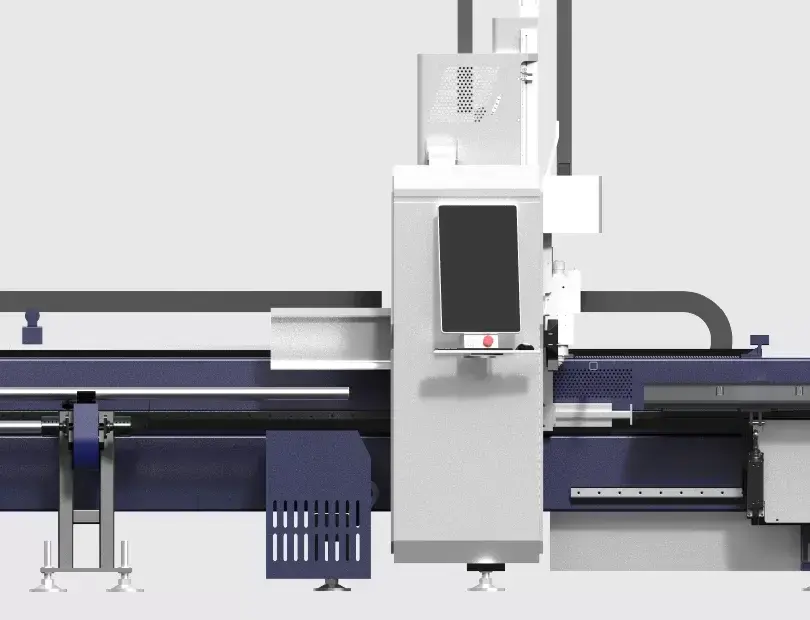

 Professional control system achieves intelligent production

Professional control system achieves intelligent production

Convenient and easy-to-use cutting nesting software promises fast and stable performance

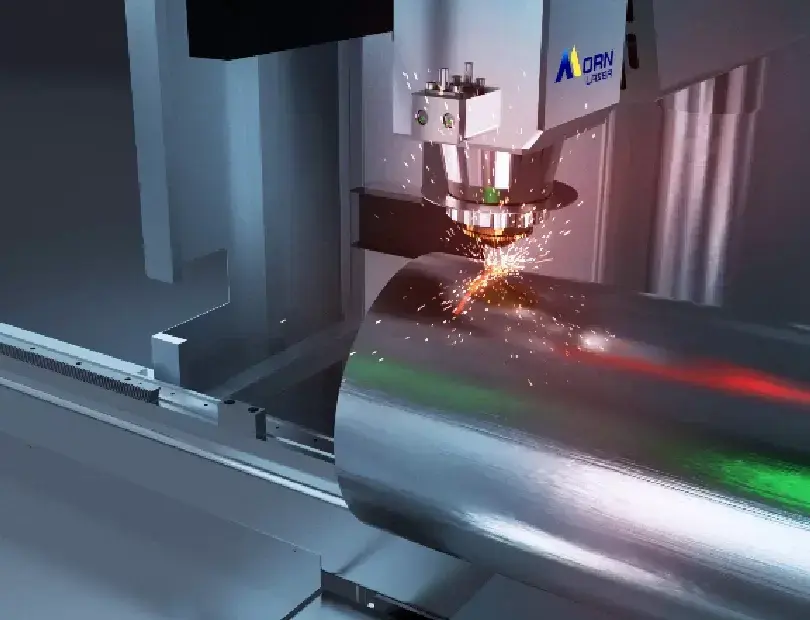

Intelligent cutting head brings highest cutting quality and productivity

Lightweight design stands out with fast acceleration performance and cutting speed

Technical Data
ModelMT-6000
Pipe Diameterφ20mm-160mm/ 200mm/350mm/500mm
Pipe Length3m-15m
Laser Power1000W/1500W/2000W/3000W/4000W/6000W/12000W
Max. Chuck Rotating Speed110m/min
Pipe Length3-15m
Max. Acceleration Speed1 G


Application & cutting samples

Favored by metal sheet fabrication factories, automation lines and large fabrication stations, this full cover fiber laser cutting machine fits for mid-thick plate cutting and cuts carbon steel, stainless steel, aluminum, copper, alloy metals effortlessly.

laser-cutting-machine
laser-cutting-machine
laser-cutting-machine
laser-cutting-machine
