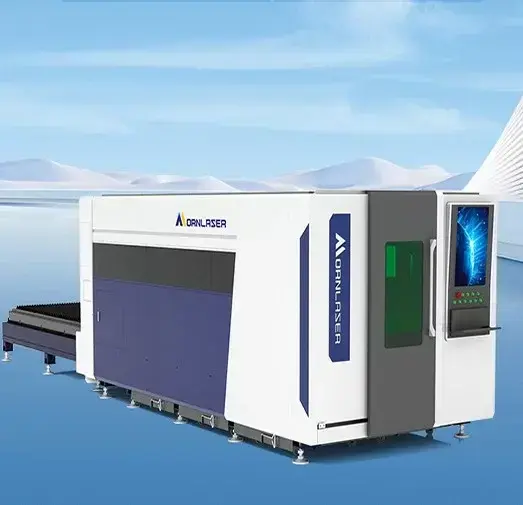

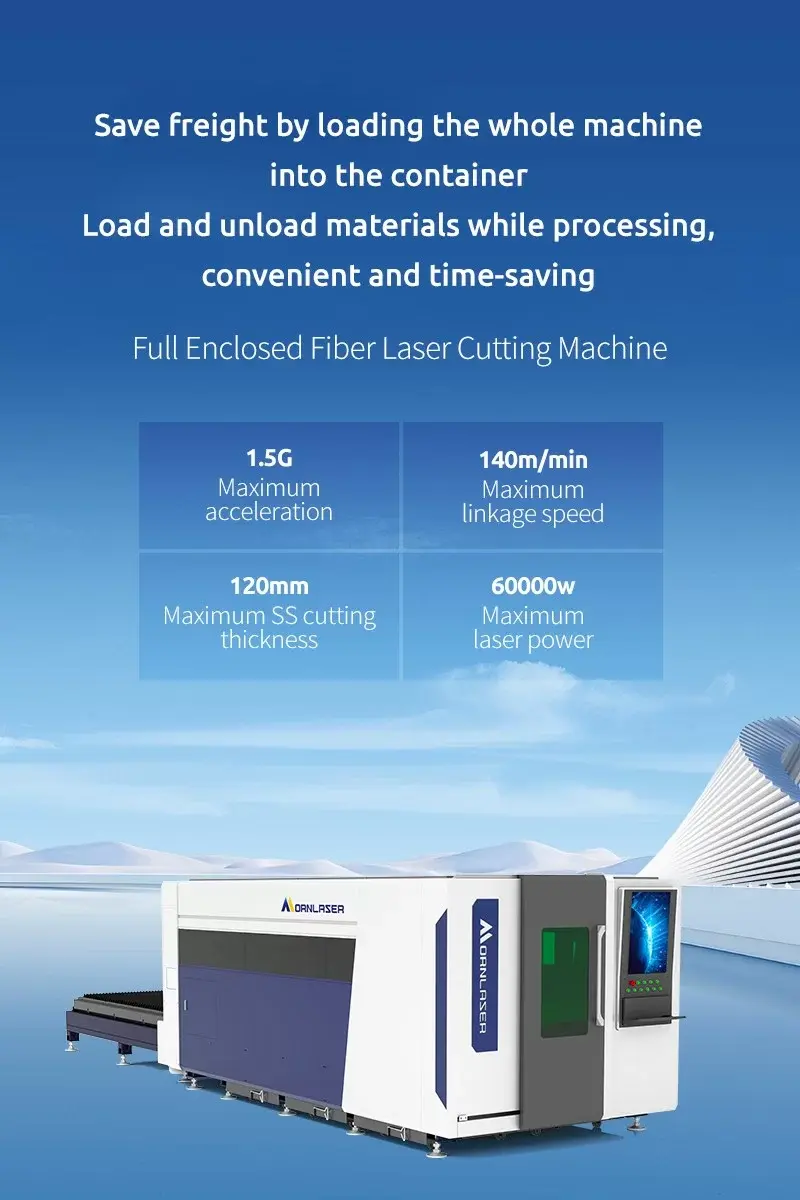

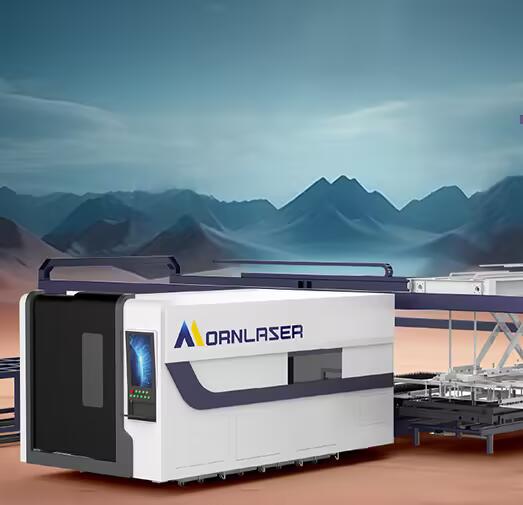

Full Enclosed Fiber Laser Cutting Machine

Save freight by loading the whole machine into the container Load and unload materials while processing, convenient and time-saving

Full Enclosed Fiber Laser Cutting Machine

Maximum acceleration

100m/min

Maximum linkage speed

40mm

Maximum SS cutting thickness

12000w

Maximum laser power

Full Enclosed Fiber Laser Cutting Machine

Benefits you can get from our full cover fiber laser cutting machine

Compact design

Safe and pollution-free

Strong stability

Efficient cutting

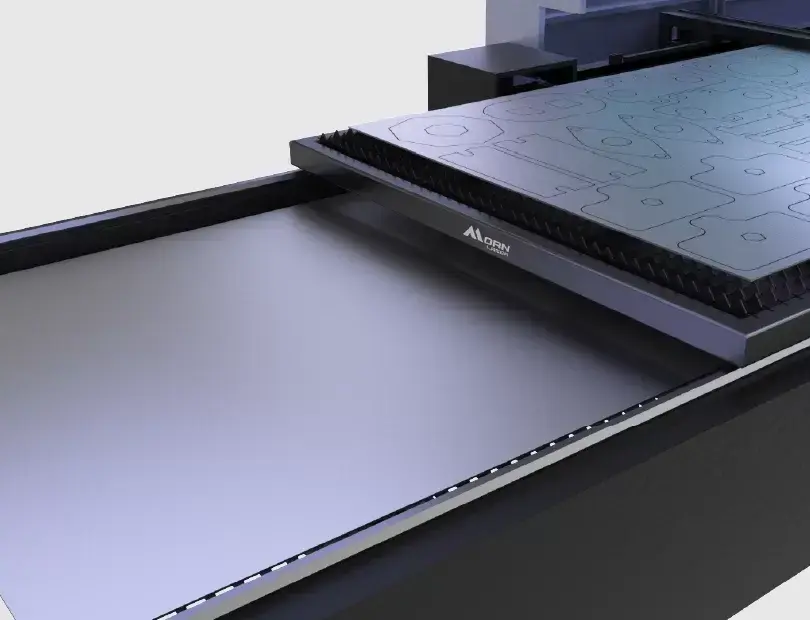

Double exchange platform

Auto up & down chain-type parallel pallets system keeps your production flowing without machine stop. With an immediate switch, you benefit from the fastest speed of pallet exchanging.

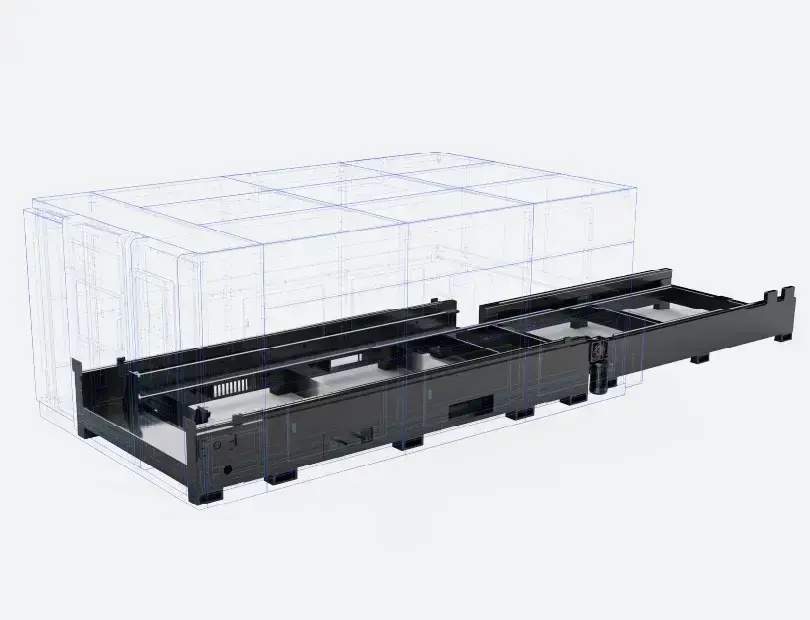

Plate welding machine bed makescutting more precise

The bed is annealed at high temperature to eliminate the stresscaused by welding, achieve better shock absorption effect, andeffectively reduce the error caused by vibration during cutting.

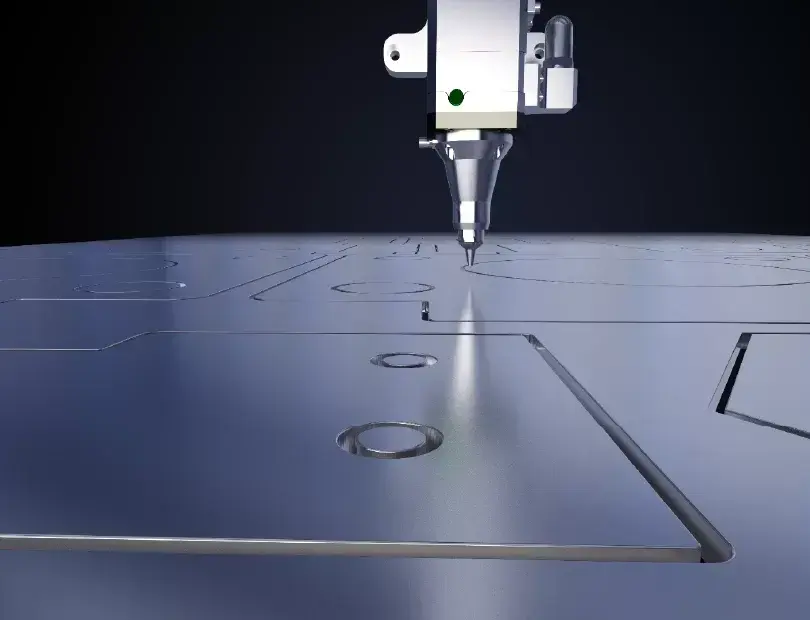

Intelligent cutting head brings highestcutting quality and productivity

It can automatically focus quickly and accurately when cuttingwhich makes cutting easier and helps improve work efficiency

Intelligent cutting head brings highest cutting quality and productivity

Lightweight design stands out with fast acceleration performance and cutting speed

Technical Data

Model	MT-L1530FH
Working Area (Customizable)	3000*1500mm
Laser Power	2000W/3000W/4000W/6000W/12000W
Repeat Positioning Accuracy	±0.02mm
Maximum Idle Speed	100m/min
Maximum Acceleration Speed	1G
Power Supply	AC380V 50HZ AC220V 60HZ

Application & cutting samples

Favored by metal sheet fabrication factories, automation lines and large fabrication stations, this full cover fiber laser cutting machine fits for mid-thick plate cutting and cuts carbon steel, stainless steel, aluminum, copper, alloy metals effortlessly
